Type | M材質 | S表面處理 | |
右螺紋 | 左螺紋 | ||
M-MTWK | M-MTWLK | S45C | - |
M-MTWBK | M-MTWBLK | 四氧化三鐵保護膜 | |
M-RMTWK | M-RMTWLK | 低溫鍍黑鉻 | |
M-MTSWK | M-MTSWLK | SUS303 | - |
R | e容差 | m+0.14 | |
8 | 5 | +0.075 | 0.7 |
10 | 9.6 | -0.09 | 1.15 |
12 | 11.5 | -0.11 | |
15 | 14.3 | ||

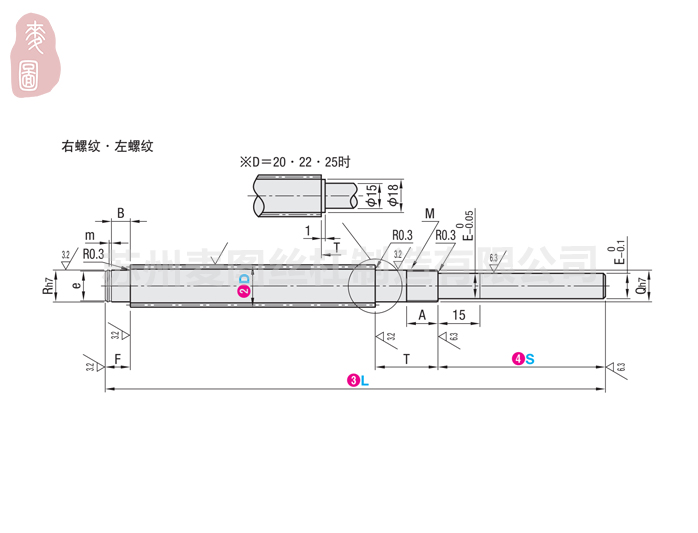

型式 | 指定單位1mm | F | R | B | T | Q | A | MX螺距 | E | D | 螺距 | ||
? Type | ?D | ?L | ?S | ||||||||||
（右螺紋） （左螺紋） | 12 | 80?1000 | 2WSW80 | 10 | 8 | 7 | 26 | 8 | 11 | 8X1.0 | 6 | 12 | 2 |
14 | 12 | 10 | 8 | 29 | 10 | 12 | 10X1.0 | 8 | 14 | 3 | |||
16 | 100?1200 | 2WSW95 | 12 | 12 | 8 | 29 | 12 | 12 | 12X1.0 | 10 | 16 | 3 | |
18 | 150?1200 | 12 | 12 | 8 | 29 | 12 | 12 | 12X1.0 | 10 | 18 | 4 | ||
20 | 2WSW100 | 12 | 15 | 9 | 34 | 15 | 14 | 15X 1.0 | 12 | 20 | 4 | ||
22 | 12 | 15 | 9 | 34 | 15 | 14 | 15X 1.0 | 12 | 22 | 5 | |||
25 | 12 | 15 | 9 | 34 | 15 | 14 | 15X1.0 | 12 | 25 | 5 | |||
